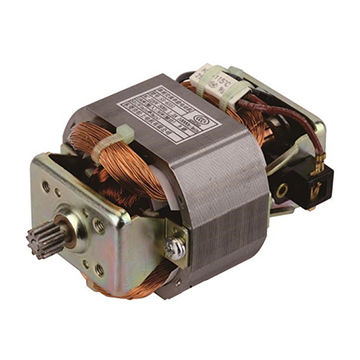

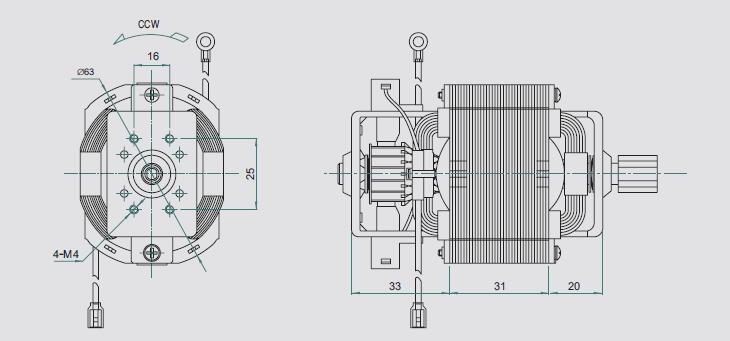

series motor SS-6330
Typical Application:
Soybean milk machine, food machine, meat grinder
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| SS-6330 | AC200-240V | 220V | 16000 | 0.5 | 9500 | 1.1 | 1176 | 120 | 115 | 4018 | 410 | 2.1 |
| SS-6340 | AC200-240V | 220V | 15386 | 0.128 | 9789 | 2.4 | 2391.2 | 244 | 251 | 6664 | 680 | 5.1 |
| SS-6350 | AC200-240V | 220V | 2003 | 1.03 | 12114 | 2.57 | 2636.2 | 269 | 341 | 8330 | 850 | 6.8 |
