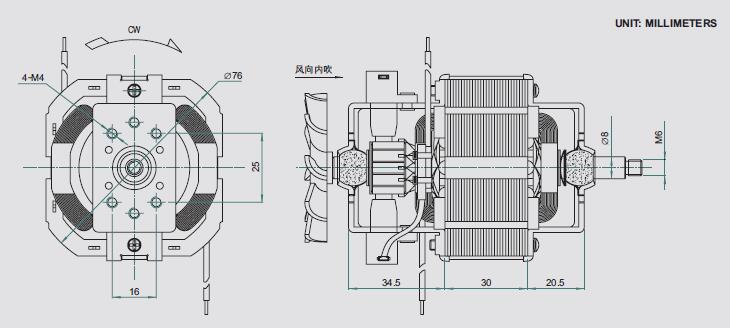

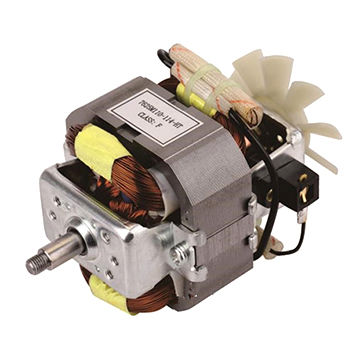

series motor SS-7025
Typical Application:
1. The juice, soybean milk machine, mixer etc.
2.Kitchen garbage processor, cutting machine
3. Shredders and other office equipment
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mM.m | A | |||
| SS-7025 | AC210-250V | 230V | 19896 | 0.25 | 9103 | 0.75 | 815.1 | 83.18 | 79.35 | 1168 | 160 | 1.07 |
| SS-7630 | AC210-250V | 230V | 21830 | 0.34 | 10305 | 1.06 | 1121 | 114.38 | 122.65 | 2058 | 210 | 1.7 |
| SS-7640 | AC200-240V | 220V | 30142 | 0.47 | 12500 | 1.9 | 2050 | 209.15 | 273.48 | 3920 | 400 | 3 |
