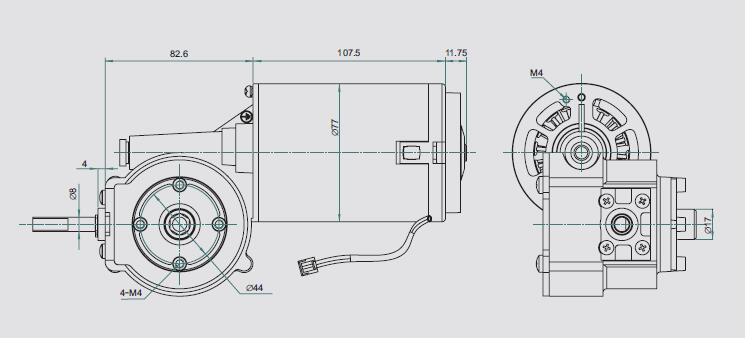

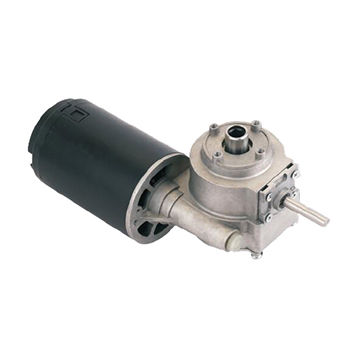

gear motor SS-5335
Typical Application:
1. The juice machine, ice cream machine,
noodle machine
2. kitchen garbage processor.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| SS-5335 | AC200-240V | AC220V | 70 | 0.2 | 60 | 1.02 | 151900 | 15500 | 82 | 597996 | 61020 | 2.35 |
| SS-5340 | AC200-240V | AC220V | 65 | 0.25 | 55 | 1.1 | 248724 | 25380 | 98 | 797328 | 81360 | 2.6 |
