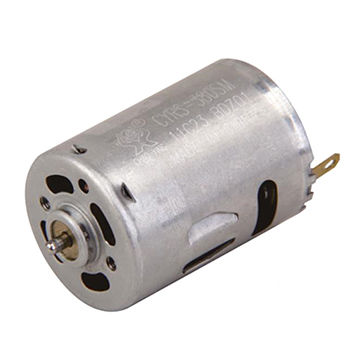

carbon brush motor CYRS-380SM-4035-R2
Typical Application
1.Household Appliances: Kitchen Appliance
2.Cordless Power Tools: Drill & Screwdriver
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| CYRS-380SM-4035 | DC1V-3V | DC2.4V | 6800 | 0.65 | 5500 | 2.78 | 85 | 8.3 | 5 | 442 | 43.3 | 11.7 |
| CYRS-380SM-14291 | DC12V-30V | DC24V | 7700 | 0.063 | 6490 | 0.336 | 80.32 | 7.9 | 5.58 | 508 | 49.8 | 1.795 |
