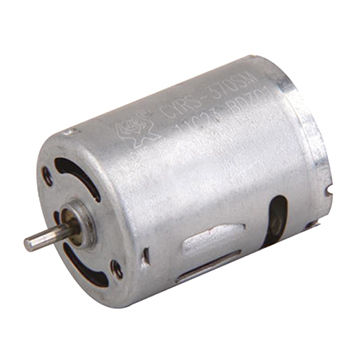

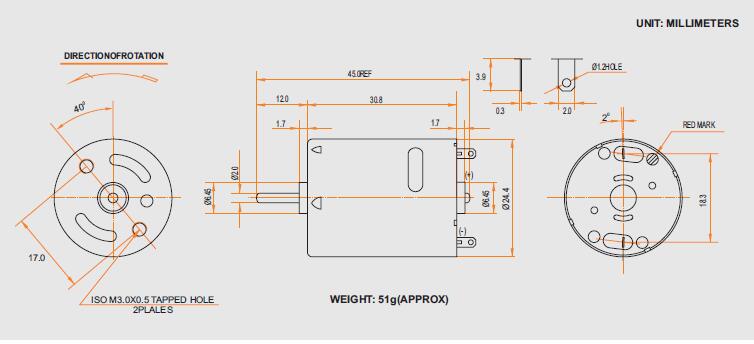

carbon brush motor CYRS-370SM-2862-R2
Typical Application
Toys and Models: Radio Control Model
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYRS-370SM-2862 | DC4.5~9.6V | DC7.2V | 16873 | 0.318 | 14375 | 1.858 | 55.97 | 5.48 | 8.61 | 378.2 | 37.06 | 10.7 |
| CYRS-370SM-2967 | DC6.0~10.0V | DC9.0V | 18826 | 0.261 | 16340 | 1.73 | 63.8 | 6.25 | 11.2 | 483.2 | 47.4 | 11.4 |
