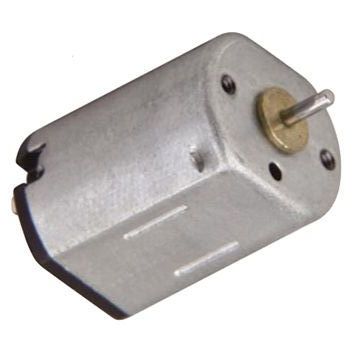

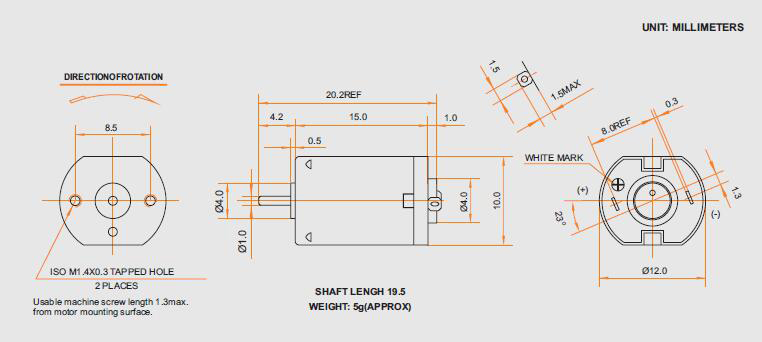

metal brush motor CYFF-N20-13115-R2
Typical Application:
1.Precision Instruments: Camera
2.Toys and Models:Motorized Toy, Motorized Model, Radio Control Model
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATINC RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYFF-N20-10190 | 2~5V | 3V | 11648 | 0.033 | 9309 | 0.131 | 2.1 | 0.206 | 0.21 | 10.5 | 1.02 | 0.52 |
| CYFF-N20-13115 | 1.5~3V | 2.4V | 14800 | 0.045 | 12193 | 0.208 | 2.33 | 0.23 | 0.3 | 12.8 | 1.25 | 0.95 |
