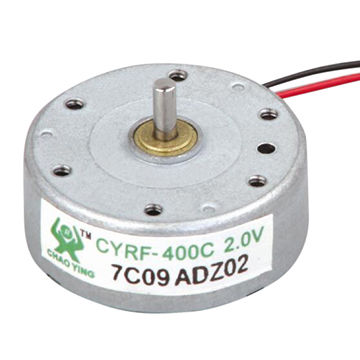

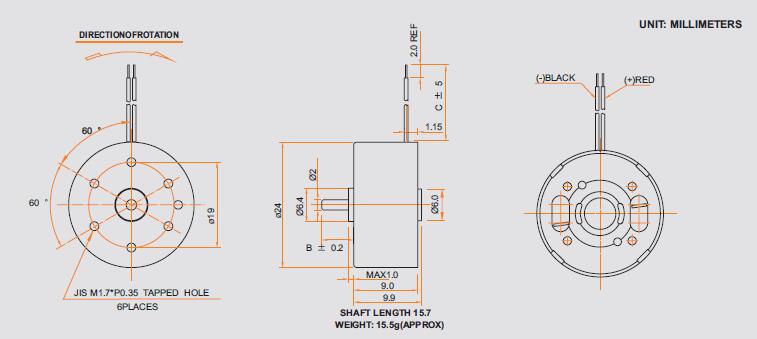

metal brush motor CYRF-400C-11400-R2
Typical Application:
1.Audio and Visual Equipments:
2.Portable Player, Car CD Player
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| CYRF-400C-11400 | 1~6V | 2.0 V | 3200 | 0.04 | 1950 | 0.12 | 4 | 0.39 | 0.07 | 7 | 0.68 | 0.25 |
