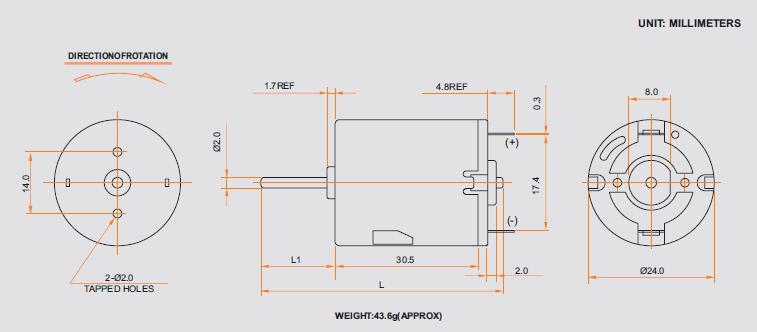

metal brush motor CYRE-280SA-22120
Typical Applicatication
Automotive products：
1.Door Lock coatroller Motor
2.Water punp Motor Motor
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYRE-280SA-22120 | 4.5~7.5V | 6.0V | 8200 | 0.096 | 7000 | 0.56 | 31.9 | 3.13 | 2.29 | 216.8 | 21.25 | 3.23 |
