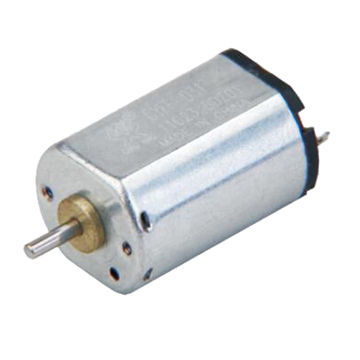

metal brush motor CYFF-031-12120-R2
Typical Application:
1.Precision Instruments
2.Household Appliances
3.Blood Pressure Meter
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYFF-031-12120 | DC2.0V~4.0V | DC3.0V | 9954 | 0.044 | 7483 | 0.215 | 5 | 0.49 | 0.384 | 20 | 1.96 | 0.95 |
| CYFF-031-12130 | DC2.0V~4.0V | DC3.0V | 8430 | 0.038 | 6480 | 0.19 | 5 | 0.49 | 0.33 | 21 | 2.1 | 0.82 |
| CYFF-031-14100 | DC2.0V~4.0V | DC3.0V | 12600 | 0.09 | 10300 | 0.34 | 5 | 0.49 | 0.53 | 21 | 2.1 | 1.2 |
