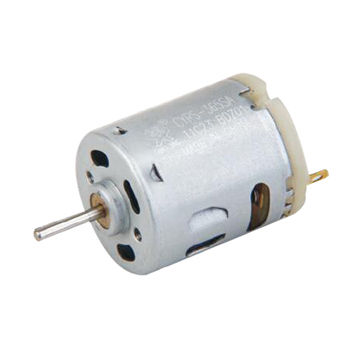

carbon brush motor CYRS-365SA-2170-R2
Typical Application
Household Appliances: Hair Dryer
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYRS-365SA-2170 | DC12-20W | DC17V | 21100 | 0.23 | 17665 | 1.16 | 69.56 | 6.82 | 13.15 | 424.2 | 41.57 | 5.92 |
| CYRS-365SA-15155 | DC24-37V | DC36V | 21100 | 0.125 | 17467 | 0.57 | 72.98 | 7.15 | 13.64 | 414.67 | 40.64 | 2.66 |
