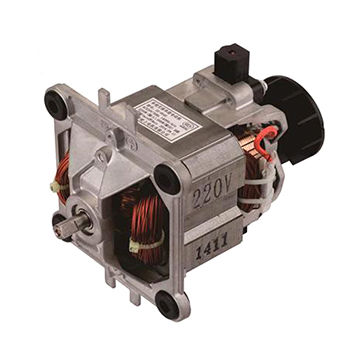

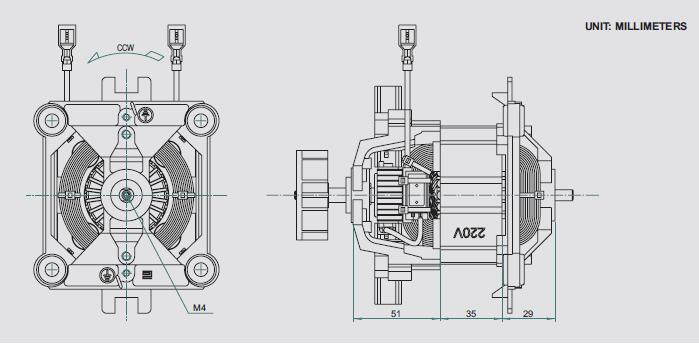

series motor SS-9540-R2
Typical Application:
1. The fruit juice machine, soybean milk machine,
ice machine, nutrition regulate machine
2. Eat hutch garbage processor, vacuum cleaner
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | w | g.cm | mN.m | A | |||
| SS-9540 | AC200-240V | AC220V | 21804 | 3.54 | 14872 | 5.92 | 5556.6 | 567 | 884.2 | 18620 | 1900 | 19.5 |
| SS-9545 | AC200-240V | AC220V | 17590 | 2.65 | 13024 | 4.83 | 4782.5 | 488 | 665.6 | 25480 | 2600 | 17 |
| SS-9820 | AC210-250V | AC230V | 20502 | 1.15 | 10873 | 2.84 | 3102 | 316.56 | 356.18 | 6860 | 700 | 4.9 |
