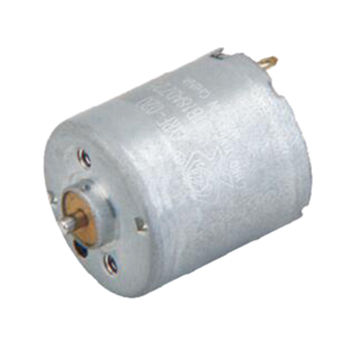

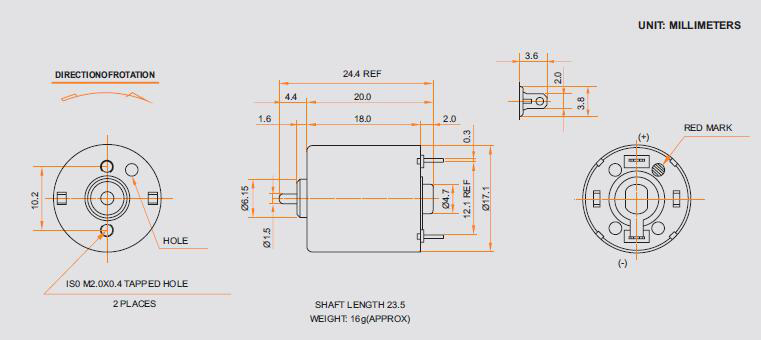

metal brush motor CYRF-020T-10210-R2
Typical Application
Toys and Models: Radio Control Model
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | g.cm | mN.m | W | g.cm | mN.m | A | |||
| CYRF-020T-10210 | 2~5V | 4.5V | 12600 | 0.058 | 9500 | 0.18 | 3.9 | 0.38 | 0.38 | 16 | 1.57 | 0.59 |
