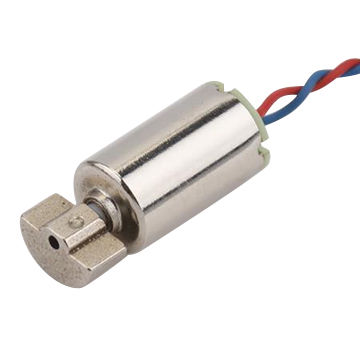

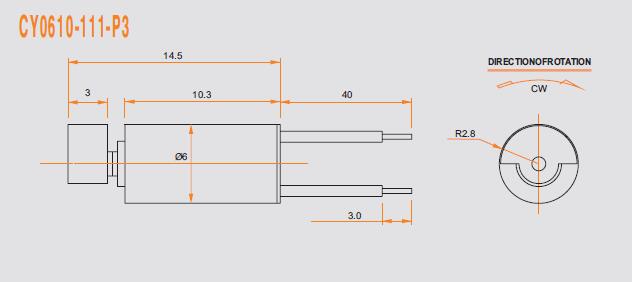

DC Coreless Motor CY0610-111-P3
Typical Application
1.Game machines Mobile phone
2.Health protection equipment ,Personal care.
| MODEL | RATED Voltage | Operating Voltage | Oscillator | RATED Speed | RATED Current | Stall Current | Armature Resistance | Starting Voltage |
| V | V | mm | RPM | mA | mA | Ω | V | |
| CY0610-111-P3 | 3 | 2.0~3.5 | R2.8*3.0 | 11000±2000 | 70 | 110 | 25.8 | 1.1Max |
| CV0612-111-P3 | 3 | 2.0~3.5 | R2.8*3.0 | 10000±2000 | 40 | 85 | 36.5 | 1.0Max |
| CY0614-111-P3 | 3 | 2.0~3.5 | R2.8*3.0 | 10000±2000 | 50 | 95 | 11.6 | 1.0Max |
