Hybrid Vehicle Motor Test Platform Development and Application II

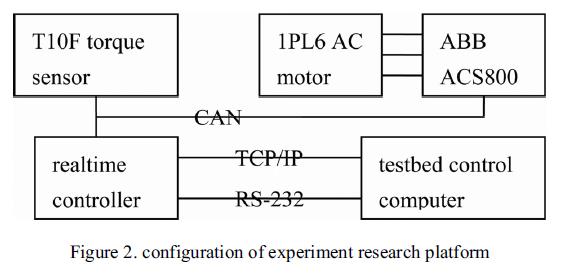

  Figure 2 shows configuration of the electric drive system experiment research platform. It consists of ABB ACS800 drive system, Siemens 1PL6 AC motor and HBM T10F torque sensor. In this paper, Siemens AC motor is used as dynamometer. Realtime controller communicate with torque sensor and ACS800 drive system by CAN bus, and pass the realtime data totestbed control computer.

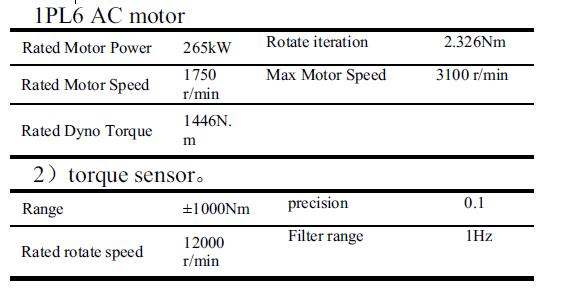

Characteristic parameters of the platform is shown as below .

  As it is demonstrated in Figure 1 and Figure 2 during measurement, all the concerned data is passed to testbed control computer, where charts and signal values are real-time displayed and recorded if needed.
