Metal Brush Motor

  • Metal Brush Motor CYRE-260SA-16175
Metal Brush Motor CYRE-260SA-16175

Metal Brush Motor CYRE-260SA-16175

  • Product description: Metal Brush Motor CYRE-260SA-16175
  • INQUIRY

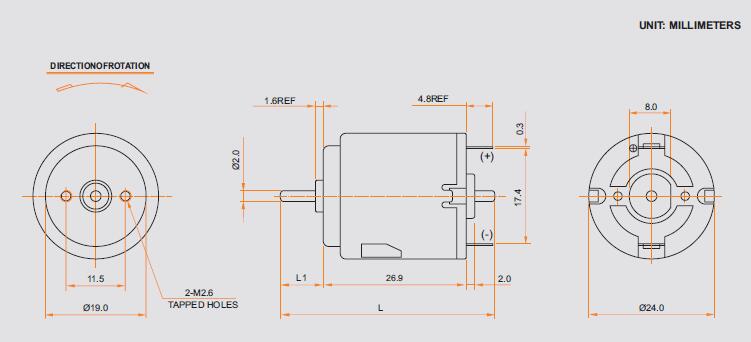

metal brush motor CYRE-260SA-16175

Typical Applicatication
Automotive products:Car reflection mirror


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STARTING
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm mN.m w g.cm mN.m A
CYRE-260SA-16175 2.0~4.0V 3.0V 3800 0.067 2930 0.23 11.13 1.09 0.34 46.6 4.76 0.76



Metal Brush Motor CYRE-260SA-16175
